“Safety” is the standard for choosing the steam generator.

Mini-gene Series

Naomoto steam generator has renewed with its original high-quality and powerful steam.
It became more compact size & new function “automatic draining system”has been added.
Performing maintenance will be easier & safer than it’s used to be.



SafetyAutomatic draining system makes no worry
about getting scalded.

Naomoto safety steam generator has been added new function “automatic draining system”. Automatic draining system will remove your worry about getting scalded while draining process.



EasyJust one press.
Then the automatic draining begin.

Just need to press the button on the operation panel. Any operator can start automatic draining. This function release you of annoying draining process when you finish using or before using it.



User friendly*110V & 220V power voltage available
*Compact design. Fitting any location even under the ironing table.
*The Caster wheels help to move easily.

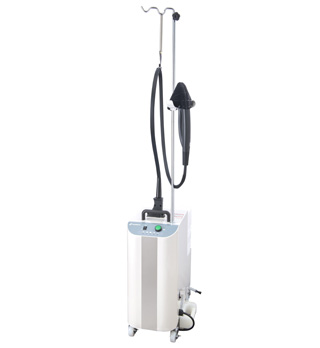

Steam Brush

*Steam Brush

Useful for the various application such as finishing for the dress, suits, high-quality products. Also touch up finishing partially for wrinkles and shrinkage.
Can be used the brush by the garments hanging on the hanger.

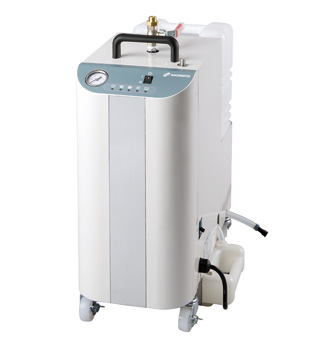

NBN-114Sa / NBN-115Sa

NBN-104Sa



NBN-115Bb NBN-105Bb

Model NBN-114Sa NBN-115Sa
Rated pressure 0.2MPa
Rated Voltage 220V single phase 240V single phase 220V single phase 240V single phase
Electric consumption 1.8kW 2.2kW 2.7kW 3.3kW
Evaporation rate 2.7kg/h 3.3kg/h 4.05kg/h 4.95kg/h
Water feed method Cartridge water tank method
Machine dimension W300 x D500 x H615 mm
Machine weight 23kg
Condensate return not included
Electric steam iron(only inline pressing)

1 set

2 sets
Electric steam iron(only Finishing pressing) 1 set 1 set


Brush type

Model NBN-115Bb
Rated pressure 0.25MPa
Rated Voltage 220V single phase 240V single phase
Electric consumption 3.06kW 3.66kW
Evaporation rate 4.05kg/h 4.95kg/h
Water feed method Cartridge water tank method
Machine dimension W300 x D500 x H610mm (Main machine)
W300 x D500 x H1480~1870mm (Tip of the pole)
Machine weight 23kg(Main machine), 25kg(brush, pole set)
