Electric Steam Generator
Epoch-making condensate recycling system!

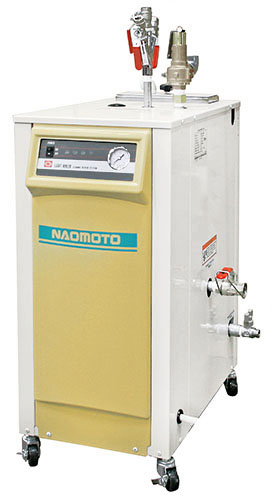

NBC-1600
Model |
1600E |
CNP(ITS)/ASP/ASL/AHS Electric/Steam |
 |
HSP/HSL-Series All steam iron |
|
CDP/CDL-Series(2-in-1) Electric/Steam |
|
| Model | NBC-1600E |
|||
| Voltage | 220V 1ph |
240V 1ph |
380V 3ph |
415V 3ph |
| Heater capacity | 7.2kW |
6.0kW |
7.2kW |
6.0kW |
| Steam evaporation | 10.8kg/h |
9kg/h |
10.8kg/h |
9kg/h |
| Working steam pressure | 0.28MPa |
|||
| Water feeding | Automatic |
|||
| Heater on/off control | Automatic |
|||
| Machine dimension | W420xL485xH805mm |
|||
| Weight(NW) | 45kg |
|||
Epoch-making condensate recycling system!

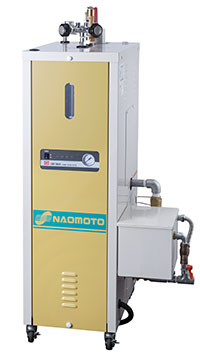

NBC-2000 Series
Model |
2090R/2091R |
CNP(ITS)/ASP/ASL/AHS Electric/Steam |
|
HSP/HSL-Series All steam iron |
|
CDP/CDL-Series(2-in-1) Electric/Steam |
|
| Model | NBC-2091R |
|||
| Voltage | 220V 1ph |
240V 1ph |
380V 3ph |
415V 3ph |
| Heater capacity | 9.0kW |
8.4kW |
9.0kW |
8.4kW |
| Steam evaporation | 13.5kg/h |
12.6kg/h |
13.5kg/h |
13.5kg/h |
| Working steam pressure | 0.3MPa |
|||
| Water feeding | Automatic |
|||
| Heater on/off control | Automatic |
|||
| Machine dimension | W560x L470 x H1195 mm |
|||
| Weight(NW) | 73kg |
|||
The largest capacity among NBC-Series.

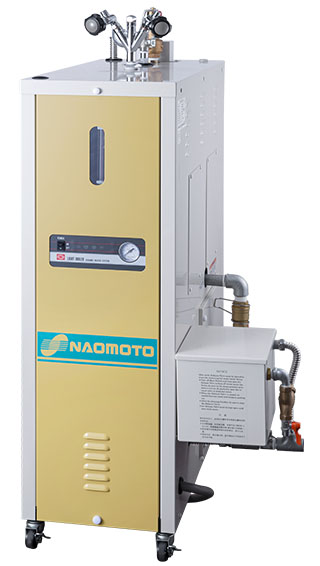

NBC-3000/4000 Series
| Model | NBC-3251R |
NBC-3301R |
NBC-4501R |
| Voltage | 380V 3ph / 415V 3ph |
380V 3ph / 415V 3ph |
380V 3ph / 415V 3ph |
| Heater capacity | 18kW / 16.8kW |
24kW / 22kW |
36kW / 33kW |
| Steam evaporation | 27.0kg/h / 25.2kg/h |
36.0kg/h / 33.0kg/h |
54.0kg/h / 49.5kg/h |
| Working steam pressure | 0.3MPa |
0.3MPa |
0.3MPa |
| Water feeding | Automatic |
Automatic |
Automatic |
| Heater on/off control | Automatic |
Automatic |
Automatic |
| Machine dimension | W560xL715xH1195mm |
W560xL715xH1195mm |
W560xL715xH1300mm |
| Weight(NW) | 97kg |
97kg |
110kg |
