NMF series

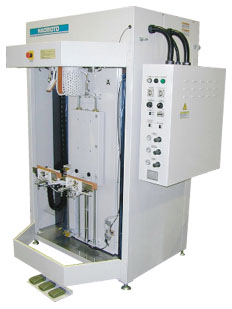

NMF-230FY-T
NAOMOTO MULTI FINISHER


Features
Carousel system enovated by Naomoto ensures higher productivity than other single machines. This is because the NMF-21P can finish a pant while operator is loading a next pant.
Not only jeans, cotton pants but also some elastic pants can be finished without excessive expansion because of an adjustment device for both waist and length size.
Since steam and required high temperature can be kept in the finishing room, the finishing results are ensured to be excelent.

MODEL
NMF-230AM/NMF-230FY-T
Voltage 220V@1-Phase
Motor Out-put for Hot Air Blowing 0.75kW
Heater Steam Heated Type
Primary Steam Pressure
Working Steam Pressure
0.4 to 0.6 Mpa(4 to 6 kgf/cm2)
0.4 Mpa(4 kgf/cm2)
Steam Consumption 40-50kg/h
Primary Air Pressure
Working Air Pressure
0.5Mpa(5kgf/cm2)
Required Air Compressor 1600L/h
Compressed Air consumption 9.2 Liter / 1 Cycle
Finishing Capacity 2,000 to 2,400 pce/10h
depends on finishing pants
Size of Pants Waist 56`133cm (22`52inch)
depends on combination of metal fitting
Length upto 32`126cm (12`49inch)
Machine Dimension (mm) 1,445(W) x 1,585(D) x 1,965(H) mm
Weight 430kg
