NIF series
b b

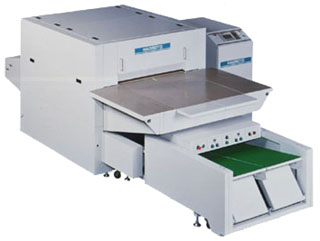

NIF-900
NEW FUSING PRESS I.H. THERMO„FUSING SYSTEM

Naomoto's original and diverse technical innovations present to the world sewing industries a completely new thermo„fusing system that offers "I.H.Fusing Press," whitch promises various and numerous merits that nobody has ever imagined before.



Features
I.H. SYSTEM (electromagnetic Induction Heating)
Heating system that realizes Precise and Rapid responsiveness in heatig.
P.I.D. Control (Proportional/Integral/Differential)
Taking full advantage of I.H.system, only the necessary thermal quantity is to be replenished effectively by precise temperature control.
PRE-HEATER
It is possible to keep the temperature of the lower belt always constant all through from feeding-entrance to discharging-exit.
DEVIDED CONTROL IN CROSSWISE DIRECTION
I.H. and sensors are placed in plural positions so that the temperature of belt is always kept constant, however the working conditions may change at ramdom.
PRESSURIZATION & PRESSURE CONTROL
Pressurization & Pressure Control Naomoto's unique system of provided. As an option, we have also a high pressure system, so that difficult materials like water-repellency or strong twisted materials, can be fused.


MODEL
NIF-900
Fusing Breadth 900mm
Power Sources 380V. 3PH
Installed Power Heater 15kW(at Start-up)
Motor 0.2kW
Air Compressor 0.6MPa(6kg/cm2)
Pressure System Pneumatic
Air Pressure 0~0.5MPa(0~5kg/cm2)
Belt Speed (max.) 7m/min
Cycle Time (min.) 8.5sec.
Machine Size Main Body Length 3,250mm
Width 1,500mm
Height 14,000mm
Controller Length 900mm
Width 540mm
Height 1,210mm
Weight about 920kg
