PRESS SYSTEM
|
JACKET MASTER

JACKET MASTER series

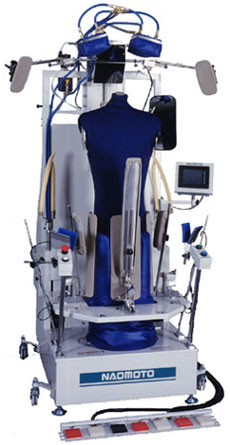

NT-95C

Professional press to produce an ideal and beautiful silhouette

Features
As the cuff holding positions are freely adjustable, it is possible to finish the sleeve line in accordance with your pattern.

Adjustable from 320mm to 470mm, according to the shoulder breadth.

Changing the attachments can change the breast-size.

Combination steam and hot-air blow from solid type dummy enables a precise finishing without too much expansion of garment.

With the computer control, you can set the most suitable conditions for the fabrics.

You can change the program just by touching the display.

By the hot air blowing, it is possible to stretch wnkles and creases on the lining cloth.

Voltage 220V 1-ph 50/60Hz
Electric Capacity 1kW
Air Pressure 0.4-0.5 MPa
Air Consumption 20-25 kg/h
Steam Pressure 0.4-0.5 MPa
Machine Dimension 700X1,200X1,920mm
Dummy Size (Shoulder Breadth) 320-470mm
(Jacket Length) 950-1200mm
(Coat Length) 1220-1500mm
Weight 250kg

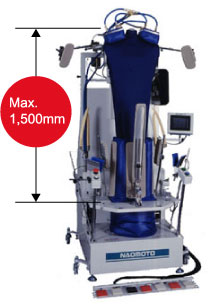

As the dummy is extendable up to max. 1,500mm, NAOMOTO JACKET MASTER is multi-purpose press system and good for finishing long coats as well as jackets.






Arm-hole Nipping

With the newly developed "ARM-HOLE NIPPING DEVICE", the inside of Arm-hole is firmly held so that the side-body line is not expanded, and therefore the total silhouette will be finished perfect and beautiful.
