Electric Steam Generator
You can get any amount of steam at any place and any time.
NBC-1000 Series NBC-1500R Series NBC-R Series mini-gene Series
Water Softener

  • There is no difference in Start-up time and Steam power between Electric Steam Generator and Gas boiler.

  • Stainless made, it excels at durability.

  • Error is indicated on the operation panel.

  • Boiler with caster

  • Suited for use in small area


Explanation of marks is here.
---------------------------------------------------------------------

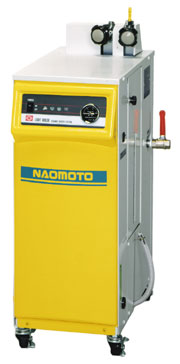

NBC-1000 Series The picture enlarges when you click it.


Super compact & ultra mobility!





NBC-1200/120/1260
CNP(ITS)/ASP
Electric/Steam
HSL-Series(2-in-1)
All steam iron
No condensate return
CDP/TAV Series(2-in-1)(3-in-1)Electric/Steam No condensate return
CDL-Series(2-in-1)
Electruc/Steam
No condensate return

Specifications NBC-1200/120/1260
Voltage 220V 1ph/380V 3ph
Heater capacity 3.0kw
Steam evaporation 4.5kg/h
Working steam pressure 0.1MPa(1kgf/cm2)
Water feeding
Heater on/off control Automatic
Machine dimension
(W~L~Hmm)
330~405~730
Packing dimension 460~570~910
Weight(NW/GW) 40kg/52kg

-----------------------------------------------------------------TOP

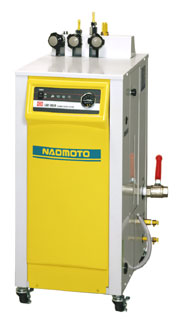

NBC-1350/1550 Series The picture enlarges when you click it.


Small size but powerful!







NBC-1350
NBC-1550
CNP(ITS)/ASP
Electric/Steam
HSL-Series(2-in-1)
All steam iron
No condensate return No condensate return
CDP Series(2-in-1)
Electric/Steam
No condensate return
-
CDP/TAV Series(2-in-1)
(3-in-1)
Electric/Steam
-
No condensate return
CDL-Series(2-in-1)
Electruc/Steam
No condensate return No condensate return

Specifications NBC-1350
NBC-1550
Voltage 220V 1ph/380V 3ph
Heater capacity 3.4kW
6.0kW
Steam evaporation 5.1kg/h 9.0kg/h
Working steam pressure 0.2MPa(2kgf/cm2)
Water feeding
Heater on/off control
Machine dimension
(W~L~Hmm)
420~485~805
Packing dimension
510~630~1040
Weight(NW/GW) 65kg/80kg

-----------------------------------------------------------------TOP

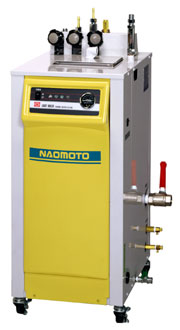

NBC-1350R/1550R Series The picture enlarges when you click it.


Epoch-making condensate
recylking system!






NBC-1350R
NBC-1550R
CNP(ITS)/ASP
Electric/Steam
HSL-Series(2-in-1)
All steam iron
CDP Series(2-in-1)
Electric/Steam
-
CDP/TAV Series(2-in-1)
(3-in-1)
Electric/Steam
-
CDL-Series(2-in-1)
Electruc/Steam

Specifications NBC-1350R
NBC-1550R
Voltage 220V 1ph/380V 3ph
Heater capacity 3.4kW
6.0kW
Steam evaporation 5.1kg/h 9.0kg/h
Working steam pressure 0.2MPa(2kgf/cm2)
Water feeding
Heater on/off control
Machine dimension
(W~L~Hmm)
420~485~805
Packing dimension
510~630~1040
Weight(NW/GW) 65kg/80kg

-----------------------------------------------------------------TOP

NBC-2000 Series The picture enlarges when you click it.


Epoch-making condensate
recycling system!






NBC-2090R
CNP(ITS)/ASP
Electric/Steam
HSL-Series(2-in-1)
All steam iron
CDP/TAV Series(2-in-1)(3-in-1)Electric/Steam
CDL-Series(2-in-1)
Electruc/Steam

Specifications NBC-2090R
Voltage 380V 3ph
Heater capacity 9.0kw
Steam evaporation 13.5kg/h
Working steam pressure 0.3MPa(3kgf/cm2)
Water feeding
Heater on/off control Automatic
Machine dimension
(W~L~Hmm)
555~455~1290
Packing dimension 660~700~1350
Weight(NW/GW) 70kg/95kg

-----------------------------------------------------------------TOP

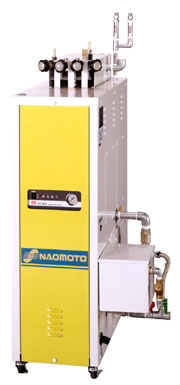

NBC-3000/4000 Series The picture enlarges when you click it.


The biggest capacity
amoung NBC-Series





Option for water-feeding,
simple & easy installation
5L capacity
cartridge tank
30L capacity
cistern

Specifications NBC-3250R
NBC-3330R
NBC-4500R
Voltage 380V 3ph
Heater capacity 18kW
24kW
36kW
Steam evaporation 13.5kg/h 27.0kg/h 54.0kg/h
Working steam pressure 0.3MPa(3kgf/cm2)
Water feeding
Heater on/off control
Machine dimension
(W~L~Hmm)
555~705~1290 555~705~1395
Packing dimension
670~880~1320
680~860~1360
Weight(NW/GW) 95kg/135kg 80kg/115kg

-----------------------------------------------------------------TOP

mini-gene Series The picture enlarges when you click it.
Compact and Portable
Steam generator of economy type which can be used anywhere.

SC-100S(mini generator)

  • It is possible to install even in small place.
  • Water is automatically supplied from water tank with an exclusive hose.
  • 100V(1.5kW) specification is also available for this steam generator.
  • It is also suitable for low-temperature use of an iron.
  • Since it does not get hot like gas boiler, your working environment will be improved.
    Model SC-100S
    Electric Capacity 100V 1.5kW/200V 2.2kW
    Dimensions W200mmXD490mmXH400mm
    Accessory 4L Water Tank

-----------------------------------------------------------------TOP

```````OPTIONAL@ITEM```````

Water Softener



Let's use soft water
for steam generator!





voltage

220V 1ph

Electric consumption 3W
Resin quantity 6 Liters
Water temperature 45Ž
Water pressure 1.5-5.0kg/cm2
Resin cycle Once a day to once/12 days
Salt consumption 750kg(Ave)
Max. water flow 0.36m3/h
Weight 17kg
