Gas Steam Generator
************ Gas Steam Generator ************

Explanation of marks is hear.

Automatic Steam Gas Generator

No heater troubles!
Only a little electricity consumption
(less than 1000W) for control!




ASL-Series(ITS)
Electric/Steam
HSL-Series(2-in-1)
All steam iron
CDP/TAV-Series(2-in-1)(3-in-1)Electric/Steam
CDL-Series(2-in-1)
Electric/Steam

Rated voltage

220V 1ph
Electric consumption Less than 0.1kw/h
Working steam pressure 0.1MPa(1kgf/cm2)
Evaporation rate 14kg/h
Types of gas LPG/Natural gas
Machine dimension
(W~L~H)(mm)		 450~560~1080
Packing dimension
(W~L~H)(mm)		 710~910~1350
Weight(NW/GW) 158kg/200kg

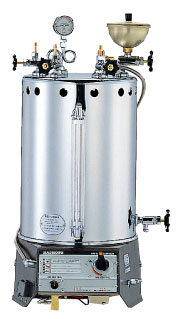

Semi-Automatic Gas Steam Generator



No electricity is required!





ASL-Series(ITS)
Electric/Steam
HSL-Series(2-in-1)
All steam iron
CDP/TAV-Series(2-in-1)(3-in-1)Electric/Steam
CDL-Series(2-in-1)
Electric/Steam

Rated voltage

-
Electric consumption -
Working steam pressure 0.1MPa(1kgf/cm2)
Evaporation rate 10kg/h
Types of gas LPG/Natural gas
Machine dimension
(W~L~H)(mm)		 400~500~700
Packing dimension
(W~L~H)(mm)		 565~565~790
and 500~600~280
Weight(NW/GW) 43.5kg/79.0kg

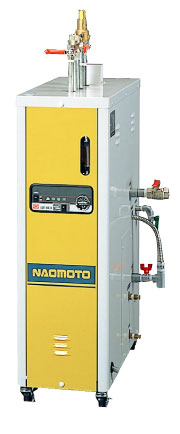

Super tough automatic steam generator

Econmical 2 steps heater
power selector switch

The picture enlarges when you click it.







Specifications NB-17A
Voltage 380V 3ph
Heater capacity 16.7kw
Steam evaporation 25.0kg/h
Working steam pressure 0.2MPa(2kgf/cm2)
Water feeding
Heater on/off control Automatic
Machine dimension
(W~L~Hmm)		 275~600~850
Packing dimension 500~740~1130
Weight(NW/GW) 75kg/102kg


Super tough semi-automaticsteam generator


Simple operation! World wide recognized super durability!

The picture enlarges when you click it.





NB-36C
CNP(ITS)/ASP
Electric/Steam
HSL-Series(2-in-1)
All steam iron		 No condensate return
CDP/TAV Series(2-in-1)
(3-in-1) Electric/Steam		 No condensate return
CDL-Series(2-in-1)
Electruc/Steam		 No condensate return

Specifications NB-36C
Voltage 220V 1ph
Heater capacity 7.0kw
Steam evaporation 10.5kg/h
Working steam pressure 0.2MPa(2kgf/cm2)
Water feeding Manual
Heater on/off control Automatic
Machine dimension
(W~L~Hmm)		 660~660~910
Packing dimension 910~660~660
Weight(NW/GW) 70kg/91kg


```````OPTIONAL@ITEM```````

Water Softener



Let's use soft water
for steam generator!




voltage

220V 1ph
Electric consumption 3W
Resin quantity 6 Liters
Water temperature 45Ž
Water pressure 1.5-5.0kg/cm2
Resin cycle Once a day to once/12 days
Salt consumption 750kg(Ave)
Max. water flow 0.36m3/h
Weight 17kg
